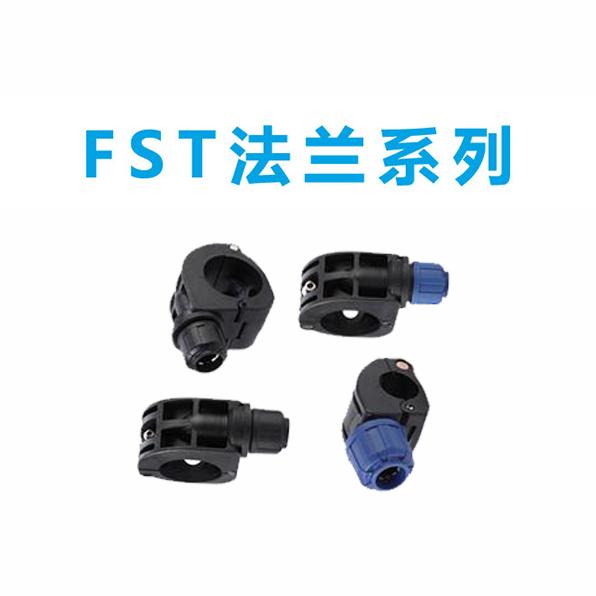

节能管道法兰系列
产品说明：
|
管用攻丝法兰 |
零件编号 PART NUMBER |
进口IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|
|
2006 2115 00 |
25 |
20 |
108 |
72 |
PA66,DN25-20 |
|
2006 3215 00 |
32 |
20 |
108 |
72 |
PA66,DN32-20 |
|
|
2006 4115 00 |
40 |
20 |
147 |
111 |
PA66,DN40-20 |
|
|
2006 5115 00 |
50 |
20 |
147 |
111 |
PA66,DN50-20 |
|
|
2006 5215 00 |
50 |
25 |
149 |
114 |
PA66,DN50-25 |
|
|
2006 6115 00 |
63 |
20 |
147 |
111 |
PA66,DN63-20 |
|
|
2006 6215 00 |
63 |
25 |
149 |
114 |
PA66,DN63-25 |
|
|
2006 8115 00 |
80 |
20 |
176 |
135 |
PA66,DN80-20 |
|
|
2006 8215 00 |
80 |
25 |
178 |
138 |
PA66,DN80-25 |
|
|
2006 8315 00 |
80 |
32 |
183 |
141 |
PA66,DN80-32 |
|
|
2006 9115 00 |
100 |
20 |
|
|
铝合金,DN100-20 |
|
|
2006 9215 00 |
100 |
25 |
|
|
铝合金,DN100-25 |
|
|
2006 9315 00 |
100 |
32 |
|
|
铝合金,DN100-32 |
|
|
2006 9415 00 |
100 |
40 |
|
|
铝合金,DN100-40 |
|
|
2006 9515 00 |
100 |
50 |
|
|
铝合金,DN100-50 |
|
|
|
||||||
|
内螺纹攻丝法兰 |
零件编号 PART NUMBER |
进口IMPORTED(mm |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|
|
2006 2016 00 |
25 |
1/2" |
|
|
PA66,DN25-1/2" |
|
2006 3016 00 |
32 |
1/2" |
|
|
PA66,DN32-1/2" |
|
|
2006 4016 00 |
40 |
1/2" |
|
|
PA66,DN40-1/2" |
|
|
2006 5016 00 |
50 |
1/2" |
|
|
PA66,DN50-1/2" |
|
|
2006 5116 00 |
50 |
3/4" |
|
|
PA66,DN50-3/4" |
|
|
2006 6016 00 |
63 |
1/2" |
|
|
PA66,DN63-1/2" |
|
|
2006 6116 00 |
63 |
3/4" |
|
|
PA66,DN63-3/4" |
|
|
2006 8016 00 |
80 |
1/2" |
|
|
PA66,DN80-1/2" |
|
|
2006 8116 00 |
80 |
3/4" |
|
|
PA66,DN80-3/4" |
|
|
2006 9016 00 |
100 |
1/2" |
|
|
铝合金,DN100-1/2" |
|
|
2006 9116 00 |
100 |
3/4" |
|
|
铝合金,DN100-3/4" |
|
|
|
|
|
|
|
|
|
|
内螺纹法兰 |
零件编号 PART NUMBER |
进口IMPORTED(mm |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|
|
2006 5228 00 |
DN50 |
1" |
|
|
热镀锌,DN50-1" |
|
2006 5328 00 |
DN50 |
1"1/4" |
|
|
热镀锌,DN50-1"1/4" |
|
|
2006 5428 00 |
DN50 |
1"1/2" |
|
|
热镀锌,DN50-1"1/2" |
|
|
2006 5528 00 |
DN50 |
2" |
|
|
热镀锌,DN50-2" |
|
|
2006 6228 00 |
DN63 |
1" |
|
|
热镀锌,DN63-1" |
|
|
2006 6328 00 |
DN63 |
1"1/4" |
|
|
热镀锌,DN63-1"1/4" |
|
|
2006 6428 00 |
DN63 |
1"1/2" |
|
|
热镀锌,DN63-1"1/2" |
|
|
2006 6528 00 |
DN63 |
2" |
|
|
热镀锌,DN63-2" |
|
|
2006 6628 00 |
DN63 |
2"1/2' |
|
|
热镀锌,DN63-2"1/2" |
|
|
2006862800 |
DN80 |
1" |
|
|
热镀锌,DN80-1" |
|
|
2006832800 |
DN80 |
1"1/4" |
|
|
热镀锌,DN80-1"1/4" |
|
|
2006842800 |
DN80 |
1"1/2" |
|
|
热镀锌,DN80-1"1/2" |
|
|
2006852800 |
DN80 |
2" |
|
|
热镀锌,DN80-2" |
|
|
2006862800 |
DN80 |
2"1/2' |
|
|
热镀锌,DN80-2"1/2" |
|
|
2006882800 |
DN80 |
3" |
|
|
热镀锌,DN80-3" |
|
|
2006932800 |
DN100 |
1"1/4" |
|
|
热镀锌,DN100-1"1/4" |
|
|
2006942800 |
DN100 |
1"1/2" |
|
|
热镀锌,DN100-1"1/2" |
|
|
2006952800 |
DN100 |
2" |
|
|
热镀锌,DN100-2" |
|
|
2006962800 |
DN100 |
2"1/2' |
|
|
热镀锌,DN100-2"1/2" |
|
|
2006982800 |
DN100 |
3" |
|
|
热镀锌,DN100-3" |
|
|
2006992800 |
DN100 |
4" |
|
|
热镀锌,DN100-4" |
|
|
2006 A428 00 |
DN150 |
1"1/2" |
|
|
热镀锌,DN150-1"1/2" |
|
|
2006 A528 00 |
DN150 |
2" |
|
|
热镀锌,DN150-2" |
|
|
2006 A628 00 |
DN150 |
2"1/2' |
|
|
热镀锌DN150-2"1/2" |
|
|
2006 A828 00 |
DN150 |
3" |
|
|
热镀锌,DN150-3" |
|
|
注：100以下法兰片均已包含8个对应大小的70长的法兰螺栓,100以上配90长的法兰螺栓。 |
||||||
|
|
||||||
|
实心法兰 |
零件编号 PART NUMBER |
规格 |
|
A |
B |
描述 DESCRIPTION |
|
|
2006 5527 00 |
DN50 |
|
|
|
热镀锌,DN50 |
|
2006 6627 00 |
DN65 |
|
|
|
热镀锌,DN65 |
|
|
2006 8827 00 |
DN80 |
|
|
|
热镀锌,DN80 |
|
|
2006 9927 00 |
DN100 |
|
|
|
热镀锌,DN100 |
|
|
2006 AA27 00 |
DN150 |
|
|
|
热镀锌,DN150 |
|
|
|
||||||
|
防震法兰 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 5529 XJ |
DN50 |
|
|
|
法兰Q235,DN50 |
|
2006 6629 XJ |
DN65 |
|
|
|
法兰Q235,DN65 |
|
|
2006 8829 XJ |
DN80 |
|
|
|
法兰Q235,DN80 |
|
|
2006 9929 XJ |
DN100 |
|
|
|
法兰Q235,DN100 |
|
|
2006 C929 XJ |
DN125-100 |
|
|
|
法兰Q235,DN125-100 |
|
|
2006 A929 XJ |
DN150-100 |
|
|
|
法兰Q235,DN150-100 |
|
|
2006 AA29 XJ |
DN150 |
|
|
|
法兰Q235,DN150 |
|
|
注：50、63配4个（63配8个）M16*60六角螺栓，及平垫、弹垫，80、100口径的配8个M16*70六角螺栓 |
||||||
|
|
||||||
|
补偿法兰 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 5531 BW |
DN50 |
|
|
|
法兰Q235,DN50 |
|
2006 6631 BW |
DN65 |
|
|
|
法兰Q235,DN65 |
|
|
2006 8831 BW |
DN80 |
|
|
|
法兰Q235,DN80 |
|
|
2006 9931 BW |
DN100 |
|
|
|
法兰Q235,DN100 |
|
|
2006 AA31 BW |
DN150 |
|
|
|
法兰Q235,DN150 |
|
